Industrial process control is one of those concepts that sounds abstract until you realize it’s everywhere. From the temperature in your coffee machine to the flow of crude oil in a refinery, control systems are working silently to keep variables steady, safe, and profitable.
This article gives you a straightforward look at what process control is, why industries use it, how it works, and the main strategies and components behind it.
What Is Industrial Process Control?
Industrial process control is the discipline of keeping process variables, things like temperature, pressure, flow, or level, at desired values despite disturbances.
Here are some simple analogies:
- A room heater keeps your living room at 22 °C.
- A water tank refills automatically when the level drops.
- A refinery column must keep pressure within safe limits.
All three are process control. The first two are simple; the last one? well, it may involves dozens of loops running together.
At its core definition, process control means:
- measure what’s happening,
- compare it to what should happen,
- and act on the system to keep it in line.
Why Do Industries Use Process Control?
Industrial plants cannot operate safely or profitably without control. The most immediate reason is safety. Boilers, reactors, and pressurized vessels can fail catastrophically if variables drift outside limits. Process control ensures parameters like temperature and pressure stay within safe boundaries.
Another driver is product quality. Whether you are producing soft drinks, steel parts, or vaccines, customers expect consistency. Without control loops monitoring and adjusting variables, every unit would be different, and most would fail specifications.
Control also improves efficiency. Stable processes avoid unnecessary stops, reduce machine wear, and keep energy use predictable. Along with efficiency comes profit optimization: better control means raw materials and utilities are used with minimal waste, which directly reduces production costs.
Finally, there is environmental protection. Many industries must meet strict regulations on emissions and waste. Control systems help ensure discharge and pollution levels stay below legal thresholds.
If you are just a little bit familiar with the business world, everything should be structured, and everything from small to big tasks should be delivered to the responsible person. You can make an analogy here, though it is very engineered in this case.

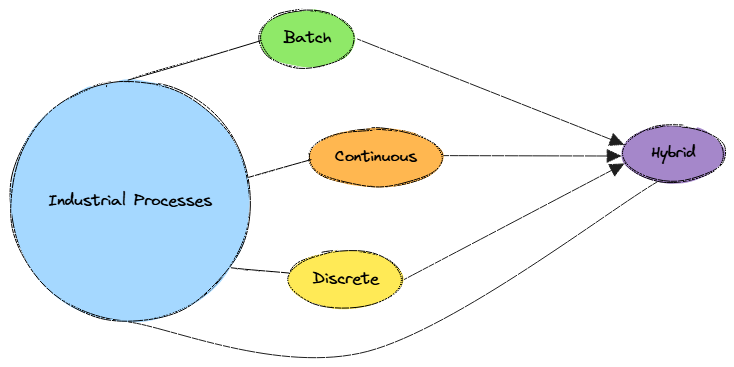

Types of Industrial Processes
Not all processes behave the same way, and industrial engineers usually describe them in four categories.
The first is discrete processes, which deal with individual parts or items. Car assembly lines, robotic welding stations, and packaging machines fall into this category. Here, control focuses on precision in movement, position, and timing.
Next are batch processes, where materials are combined and treated in defined quantities. Pharmaceutical mixing, brewing, and adhesive production are common examples. Batch control ensures the recipe is followed exactly, often requiring careful temperature and mixing control over time.
Continuous processes are at the other end of the spectrum. Refineries, chemical plants, and power stations run material flows without interruption, sometimes for months at a time. Control here is critical, since even small drifts in flow, pressure, or temperature can have huge consequences across an entire plant.
Finally, hybrid processes combine the three modes. A bottling facility, for instance, may continuously produce liquid, sterilize bottles in batches, and then use discrete robotic systems for packaging.
The three most important to remember are: discrete, batch, continuous. Hybrid is simply a mix of them.
How a Process Control System Works
Every control system, whether simple or advanced, follows the same three steps:
- Measurement. Sensors measure the variable of interest.
- Comparison. The measurement is compared to the desired value (set-point).
- Actuation. If there’s a difference, the system takes action through actuators to reduce the error.
Take a water tank level:
- A float sensor measures the water height.
- A controller compares it with the set-point.
- A valve opens or closes to bring the level back.
This loop repeats continuously. The concept is called feedback control — using the output to adjust the input.
Remember: measure → compare → act.
Here’s an example of a cooler’s process using a feedback loop:
Main Components of a Process Control System
Every control system is built on a set of core components. At the center is the process itself, the physical system being controlled, such as a tank, reactor, or motor.
sTo monitor the process, sensors measure variables like temperature, pressure, level, or flow and convert them into signals. Without accurate sensors, no control strategy can work.
The measurement is compared to a setpoint by a controller, often using an error detector. The difference between the actual and desired value is what drives the control action.
The controller (can be a microcontroller, microprocessor, FPGA, PLC… etc) is the brain of the loop. The brain of the system. Controllers decide how to react. They range from simple on–off switches to the most common and powerful: the PID controller (Proportional, Integral, Derivative). Today, most are implemented in PLCs (Programmable Logic Controllers).
The control law for a PID controller looks like this:
u(t) = K_p*e(t) + K_i*\int e(t)\,dt + K_d*\frac{de(t)}{dt}
Where:
- e(t) = error (difference between set-point and measurement).
- Kp = proportional gain (reacts to present error).
- Ki = integral gain (reacts to accumulated error).
- Kd = derivative gain (reacts to rate of change).
Keep in mind that Kp, Ki, and Kd are not arbitrary; they are parameters chosen and tuned by the engineer. Tuning can be done using systematic methods (such as Ziegler–Nichols), software tools, or controlled experimentation, in order to achieve the desired system response.
Actuators are the muscles of the system. They open valves, drive motors, or start pumps to influence the process variable. The loop then repeats continuously.
Out of all these, the names worth memorizing are sensors, controllers, and actuators. They are the building blocks of every control system.
Control Strategies in Industry
Industrial processes vary in complexity, and so do the methods used to control them. The most common is feedback control, where the system measures output, compares it to the setpoint, and makes corrections whenever there is a deviation. This strategy is simple, robust, and the foundation of almost every industrial loop.
Another important strategy is feedforward control. Instead of waiting for an error to appear, the system anticipates disturbances by measuring inputs and correcting preemptively. For example, if colder water enters a mixer, the steam valve can open before the outlet temperature drops.
Many plants also rely on cascade control, where one controller sets the target of another. A classic example is regulating steam pressure with one loop, which then supports a second loop to stabilize the process temperature.
Other strategies exist for specific applications. Ratio control keeps two streams in fixed proportion, such as chlorine added to water in treatment plants. Selective control prioritizes critical variables, protecting equipment from unsafe conditions. Advanced methods like fuzzy logic or AI are used in niche cases but remain less common.
If you remember only three, focus on feedback, feedforward, and cascade. They cover the majority of industrial systems.
Industrial Process Control and Automation
Process control is not the same as automation, though they overlap.
- Process control keeps variables stable (temperature, pressure, flow).
- Automation organizes the whole plant so machines run with minimal human input.
Automation adds layers of control hardware and software:
- PLCs (Programmable Logic Controllers). The most common industrial controllers. Reliable, rugged, and easy to program with ladder logic.
- DCS (Distributed Control Systems). Used in large plants, handling thousands of control loops.
- SCADA (Supervisory Control and Data Acquisition). Supervises distributed processes, often over large distances like pipelines.
Most known and used: PLC for machines, DCS for plants, SCADA for supervision.
Examples of Process Control in Action
Heating loop. A furnace maintains a constant outlet temperature by adjusting fuel flow.
Tank level control. Valves keep liquid at the desired height. Common in water treatment and chemical plants.
Mixing process. Two liquids are combined in set ratios, stirred for a defined time, then released. Used in food and chemical industries.
Packaging line. A PLC counts items and triggers actuators for sealing or boxing.
Refinery flow control. Flow meters and valves keep crude oil and gases balanced across distillation columns.
Key Takeaways
- Industrial process control = keeping variables like temperature, pressure, flow, or level stable.
- It ensures safety, quality, efficiency, and profitability.
- Most processes are discrete, batch, or continuous.
- Every control loop has sensors, controllers, and actuators.
- The most important strategies are feedback, feedforward, and cascade control.
- PLCs, DCS, and SCADA bring control into full automation.
